Description

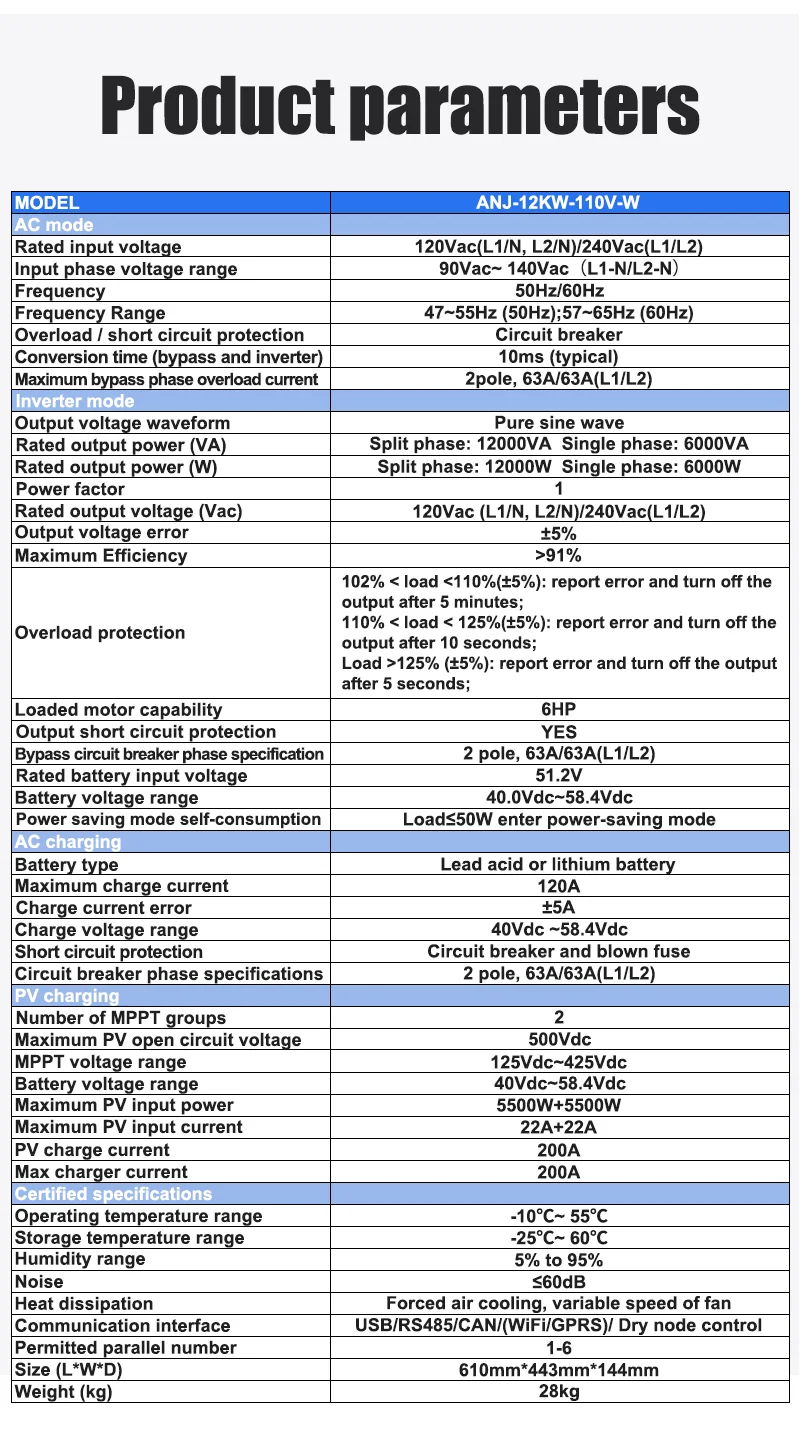

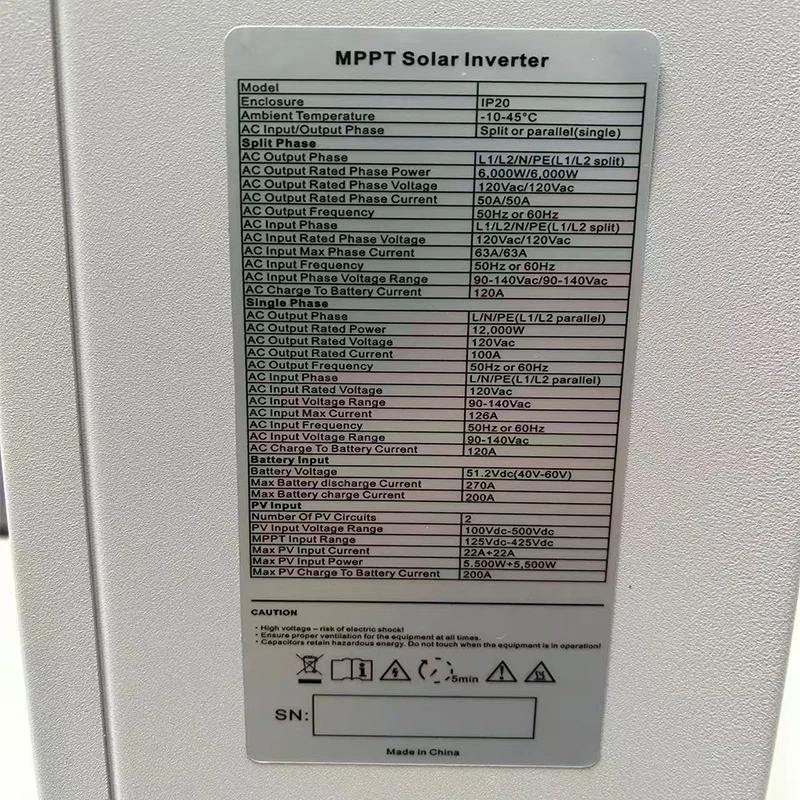

SPECIFICATIONS

Battery Voltage: 48V

Brand Name: ANENJI

Certification: CE

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

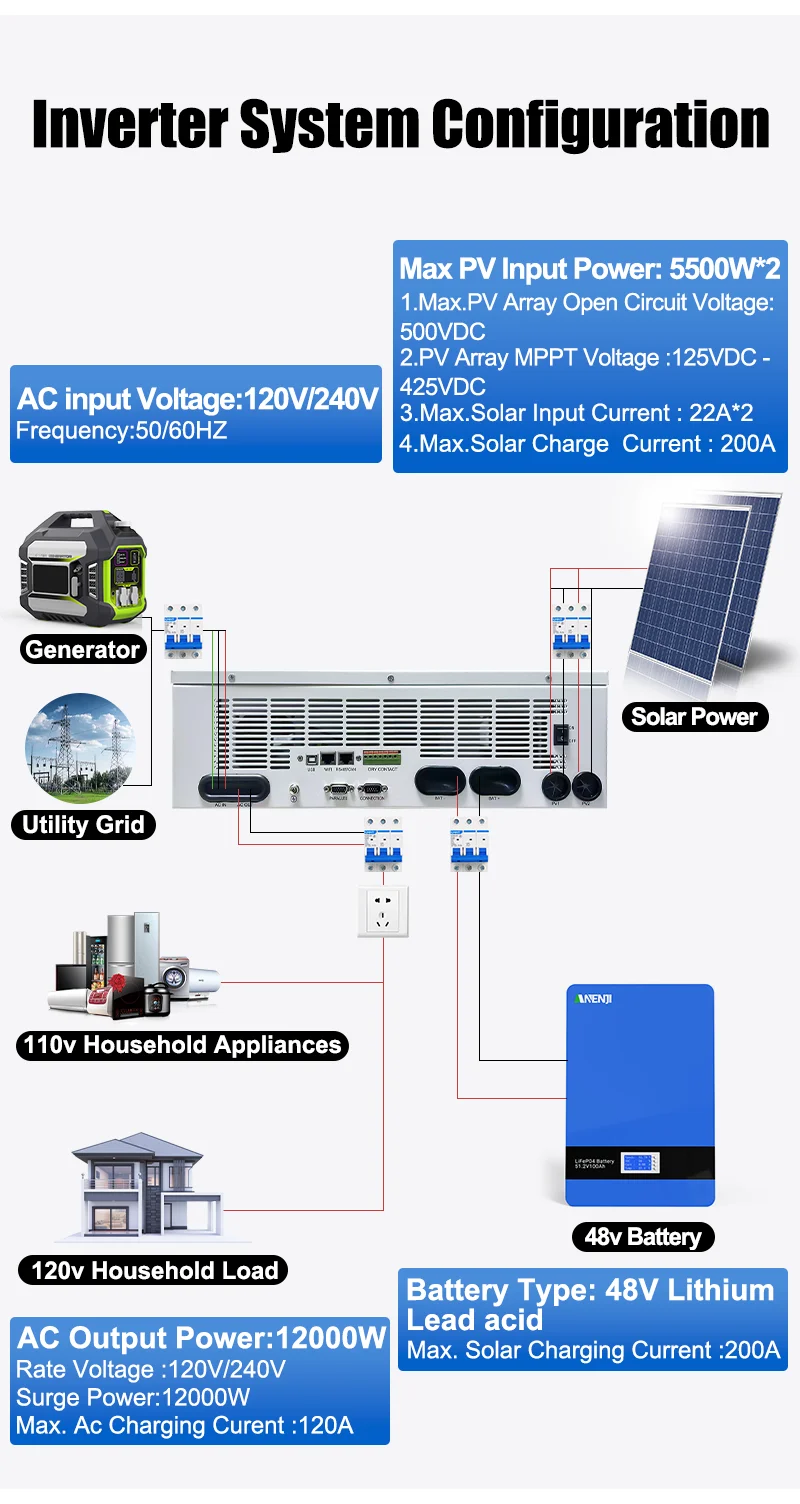

Features: Supports feeding power to the grid function,parallel,Dual PV input,2 MPPT,On grid+off grid,Split Phase,3pcs parallel 3 phase 460VAC

Floating Charge Voltage: 54VDC

Frequency Range: 50/60HZ Auto sensing

High-concerned chemical: None

Is Smart Device: Yes

Max MPPT Voltage: 500VDC

Maximum PV Array Open Circuit Voltage: 200A

Maximum PV Array Power: 6000W*2

Maximum charge current: 200A

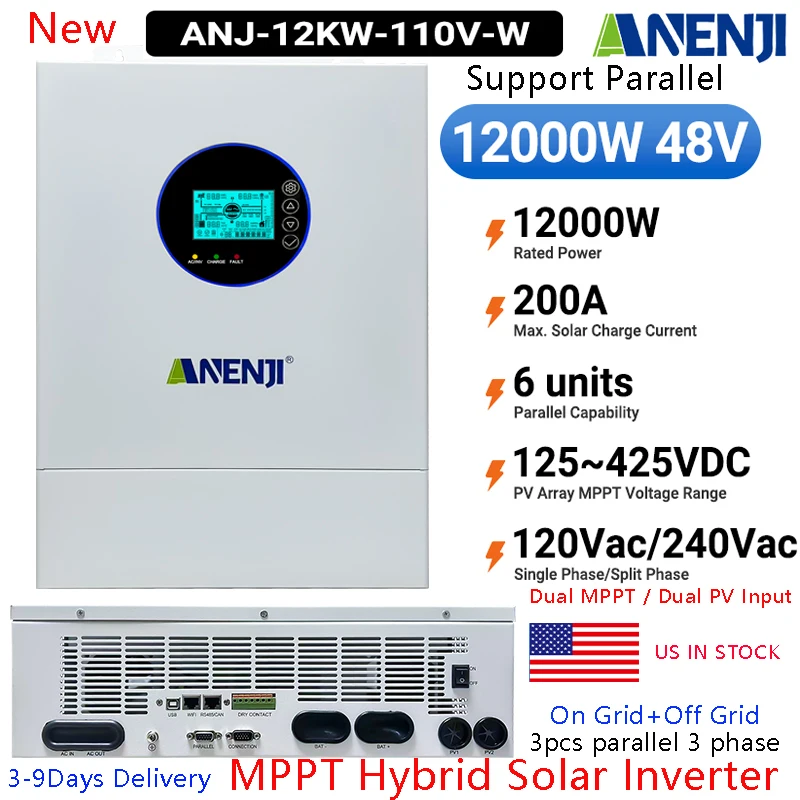

Model Number: ANJ-12KW-110V-W

Origin: Mainland China

Output AC Voltage Regulation(Batt.Model): 120/240VAC

Output Current: 200A

Output Frequency: 50/60Hz

Output Type: SINGLE

Overcharge Protection: 58.6V

Rated Power: 12000W

Surge Power: 18000VA

Wave Form: pure sine wave

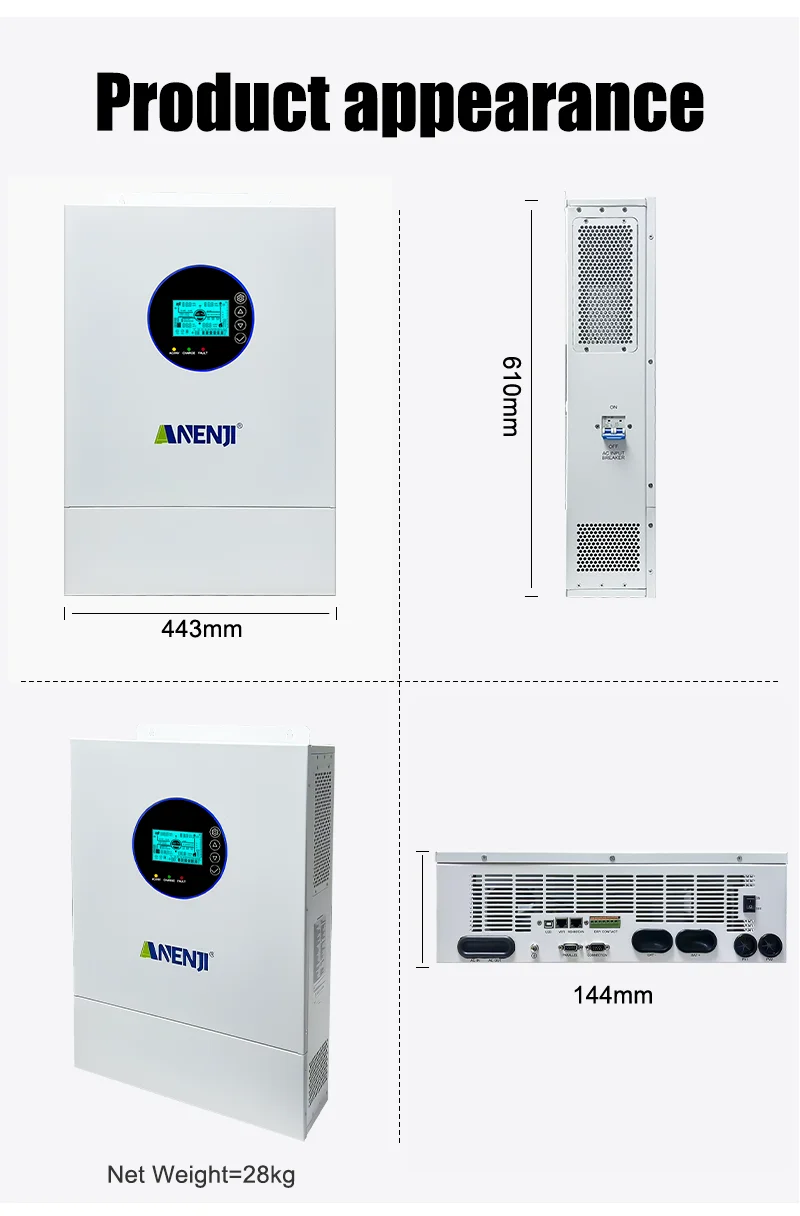

Weight: 30KG

communication interface: RS485

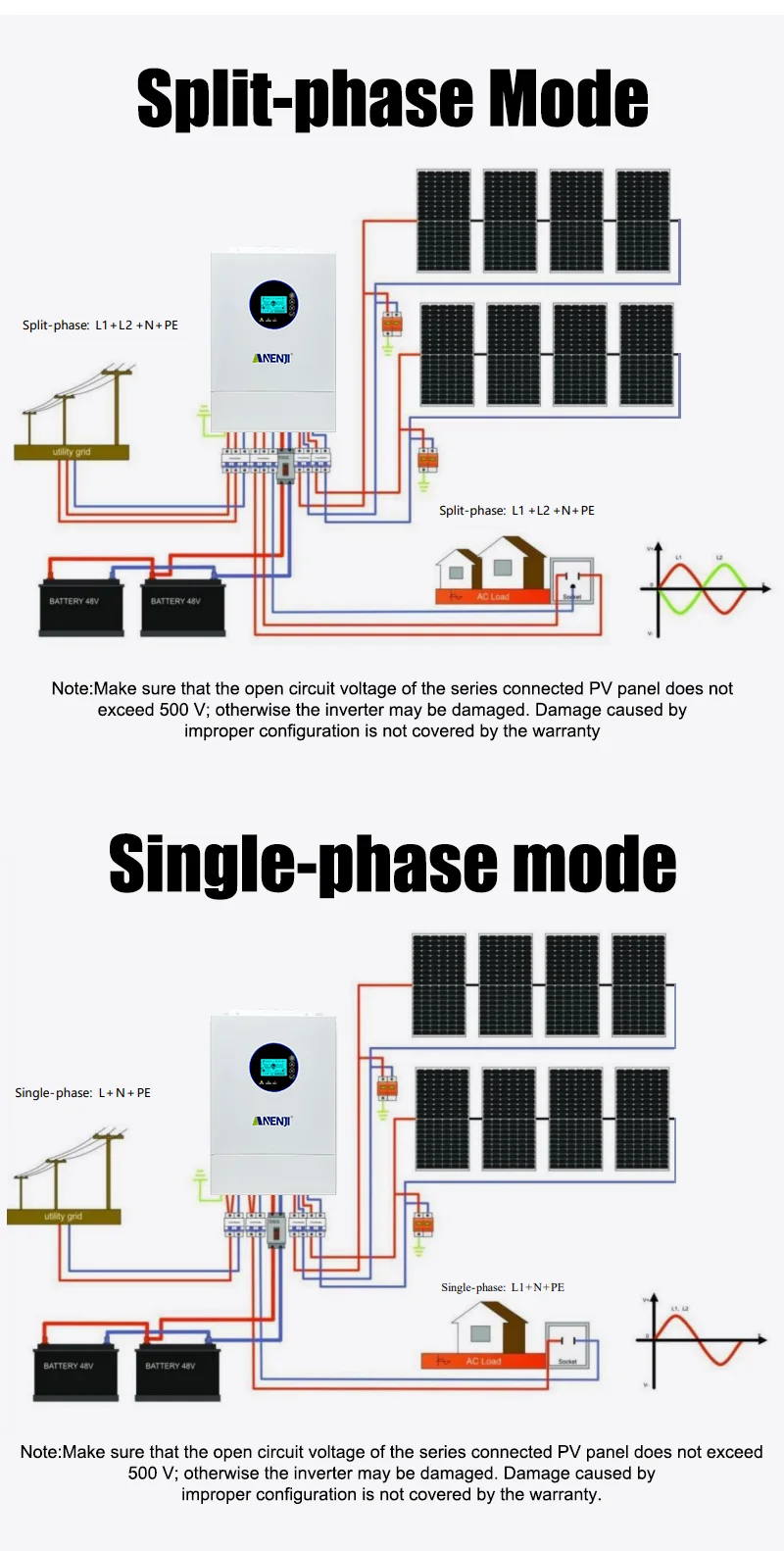

output Voltage: 120VAC(L1/N,L2/N)/240VAC(L1/L2)

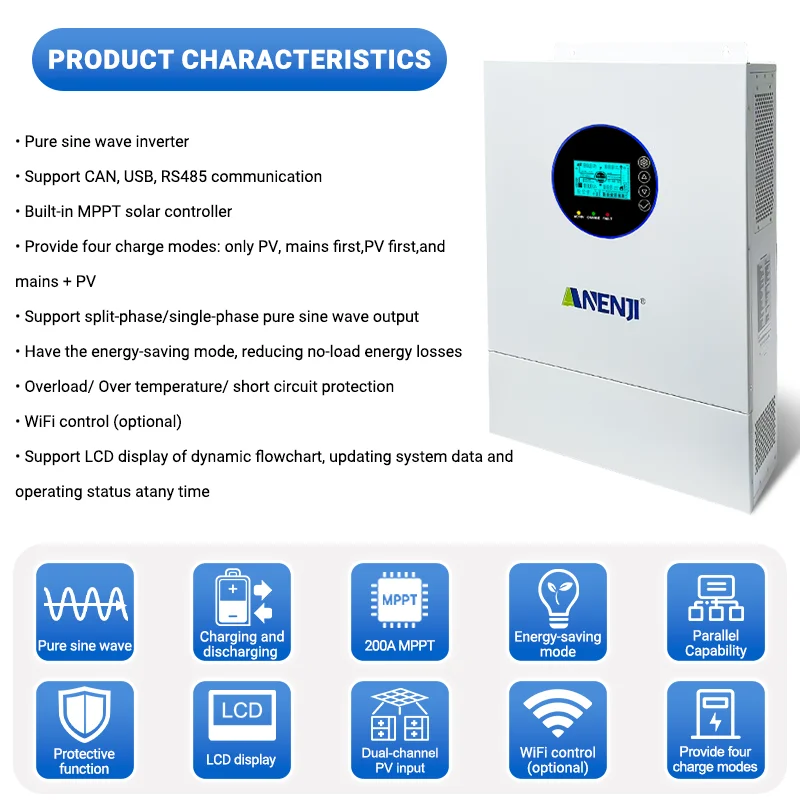

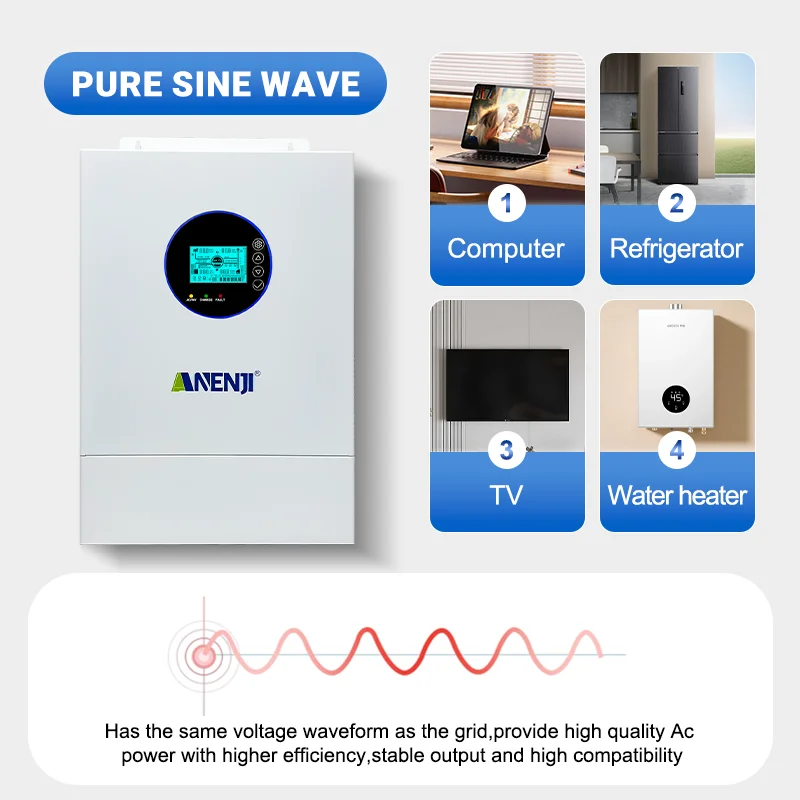

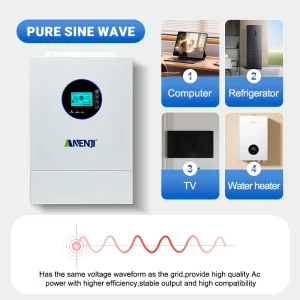

-.Pure sine wave

-Output 120VAC (L1/N,L2/N) / 240VAC (L1/L2)

– Power factor 1.0

– Photovoltaic input voltage 90-500Vdc

– Built-in MPPT 200A

– Works compatible with LifePO4 batteries

-Dual PV input

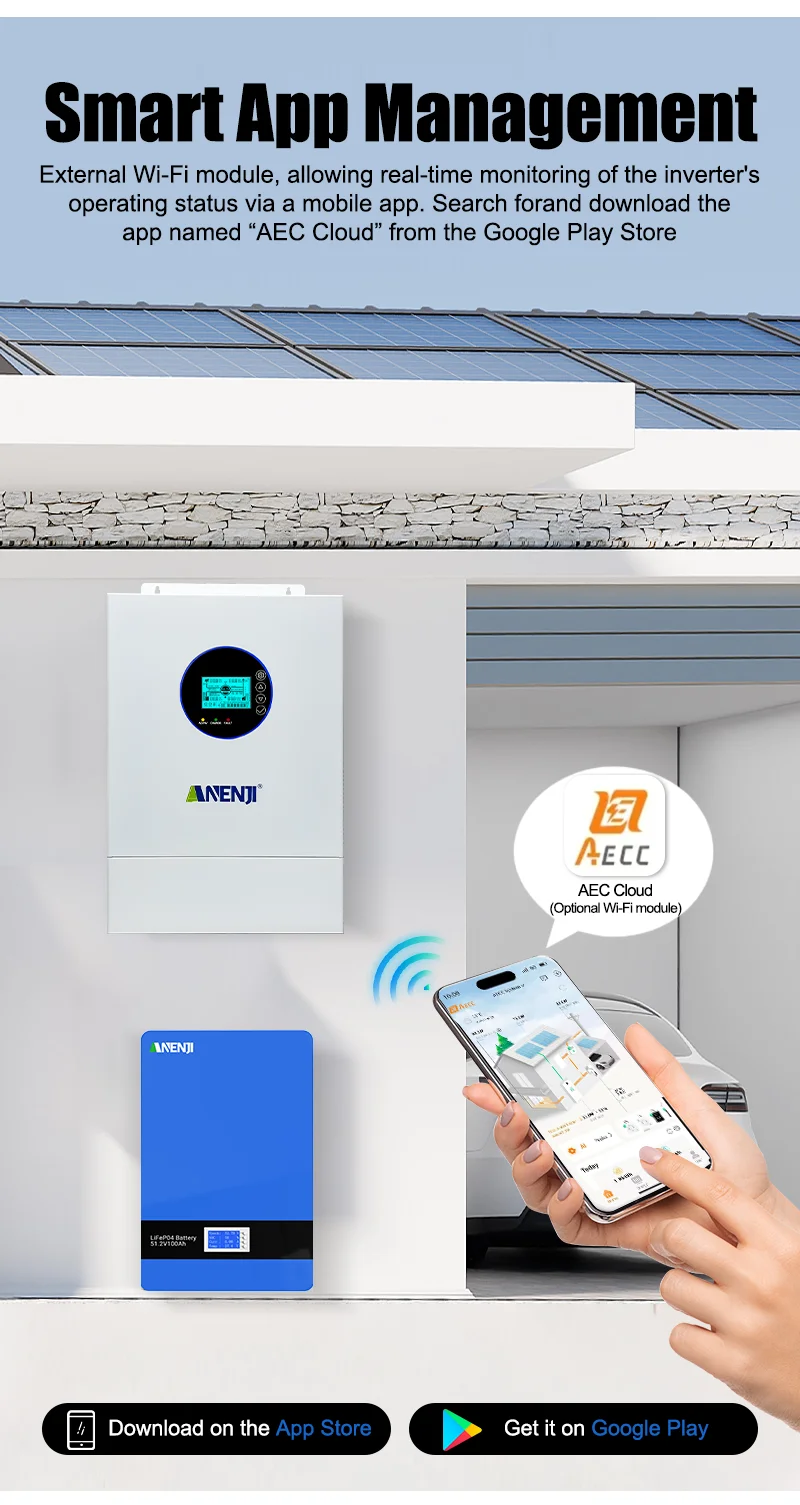

-WiFi remote monitoring (optional)

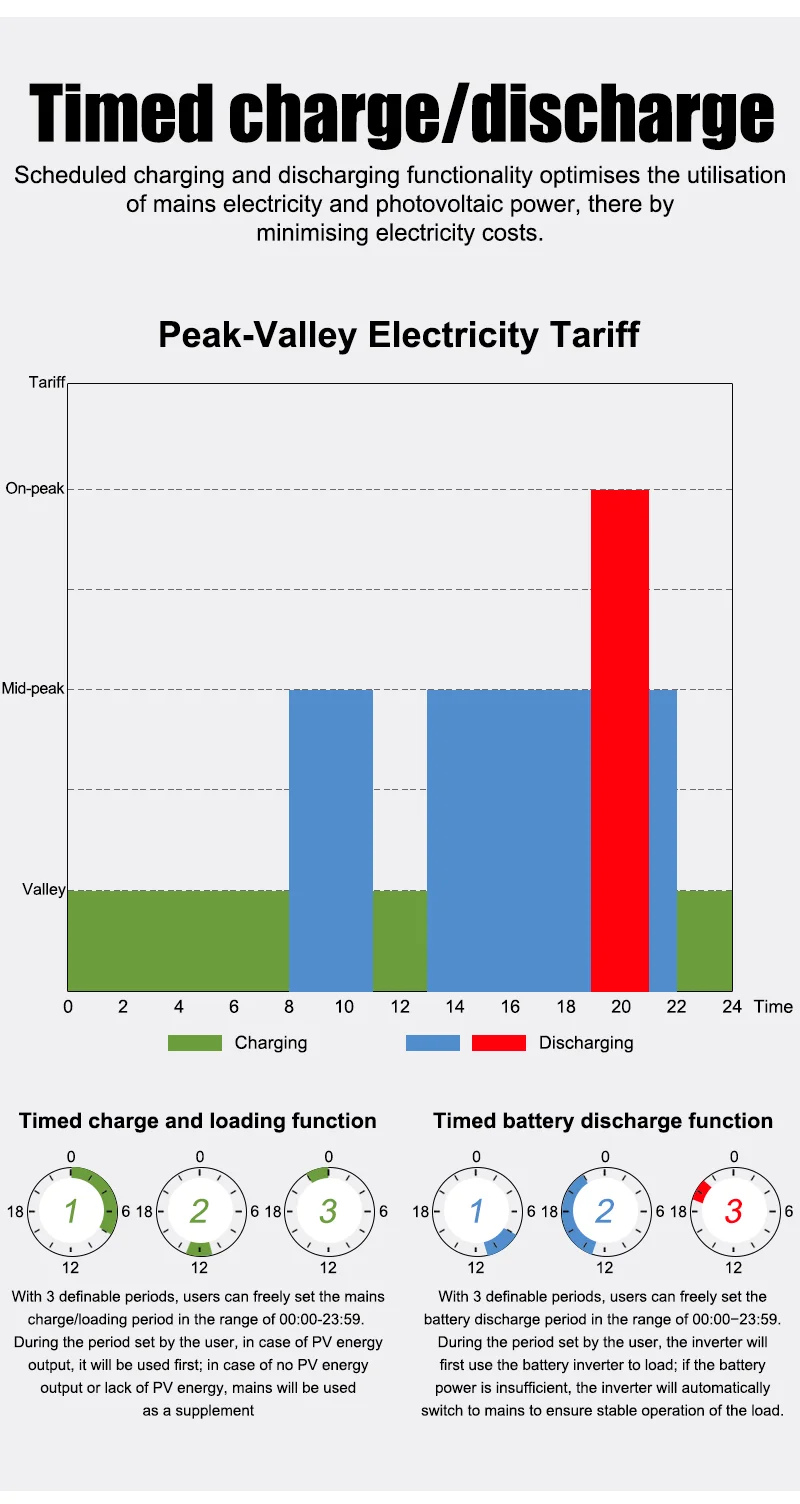

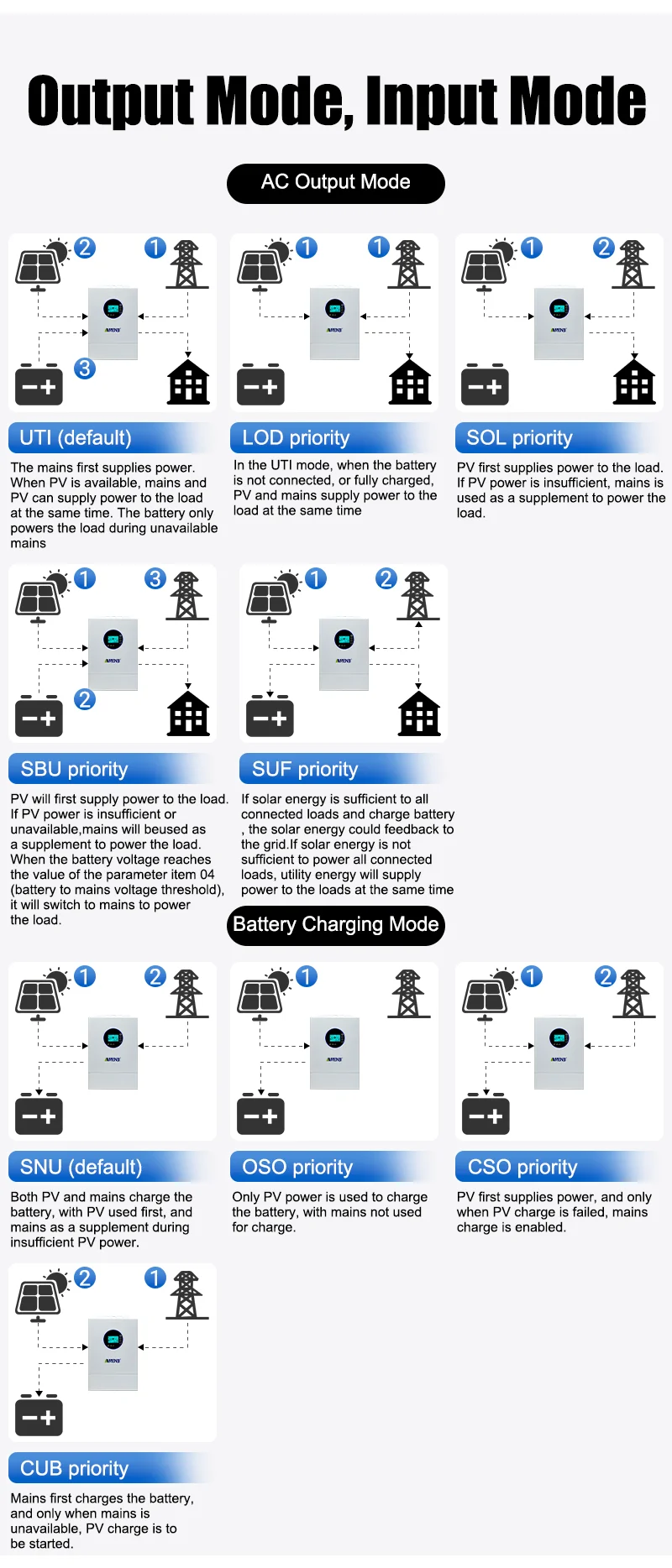

-Supports multiple output priorities to optimize battery performance and extend life cycle

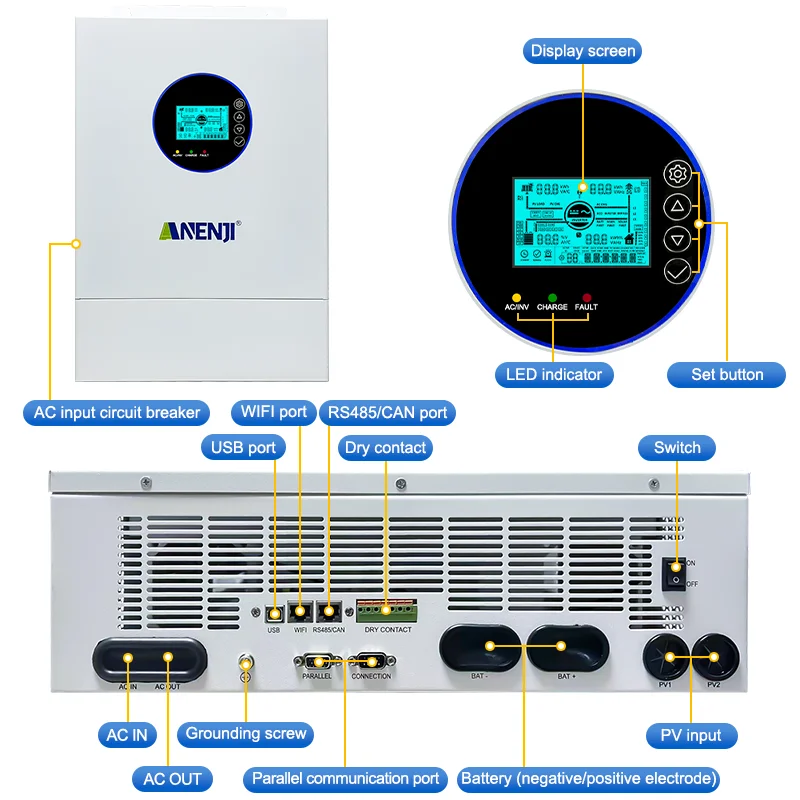

-Supports RS485 communication protocol with dry node interface

-Parallel function

-LCD touch display

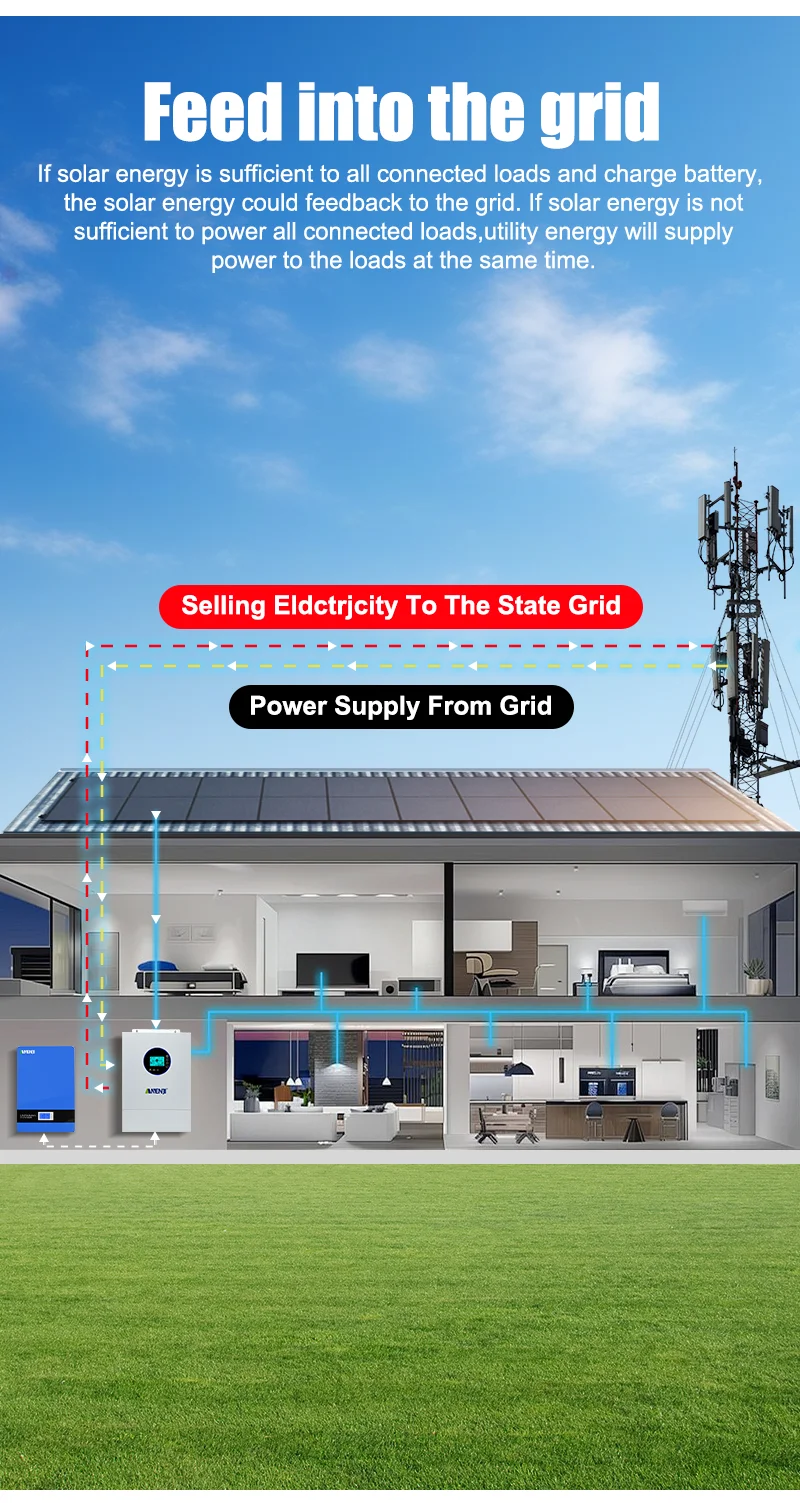

-Supports feeding power to the grid function

– Bring PC software to set all functions of the inverter

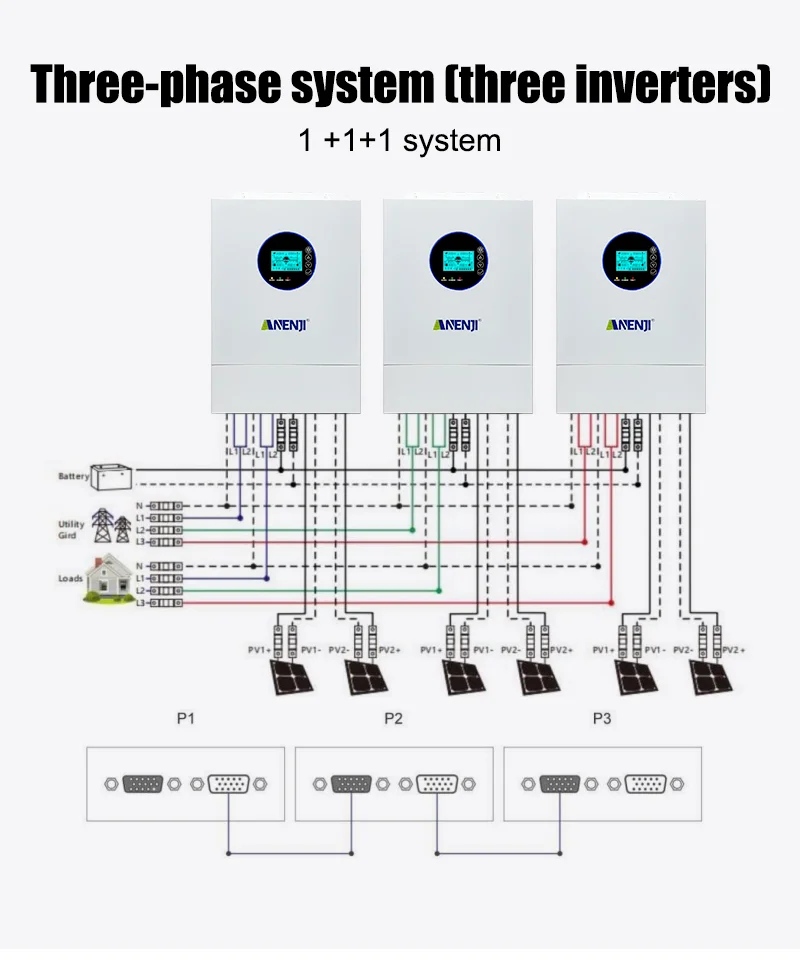

-support 3PCS 3phase AC output 460VAC

pack:

Solar inverter*1

Instruction manual*1

Parallel cable*1
