Description

SPECIFICATIONS

AC Output: 48V

Battery type: Lead acid or lithium battery

Brand Name: PowMr

Certification: CE

Communication interface: USB/RS485(WiFi/GPRS)/Dry contact control

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Feature: No-VAT, No-TAX

Function: Single phase/split phase

High-concerned chemical: None

Is Smart Device: Yes

Maximum PV input power: 5500W

Model Number: POW-SunSmart SP5.2K

Note: Phase split function can only be used when parallel

Origin: Mainland China

Original Product: Stock in USA warehouseLocal Shipping

Output Current: MPPT 100A

Output Frequency: 5000W

Output Type: Multiple

PV operating voltage range: 120-500Vdc

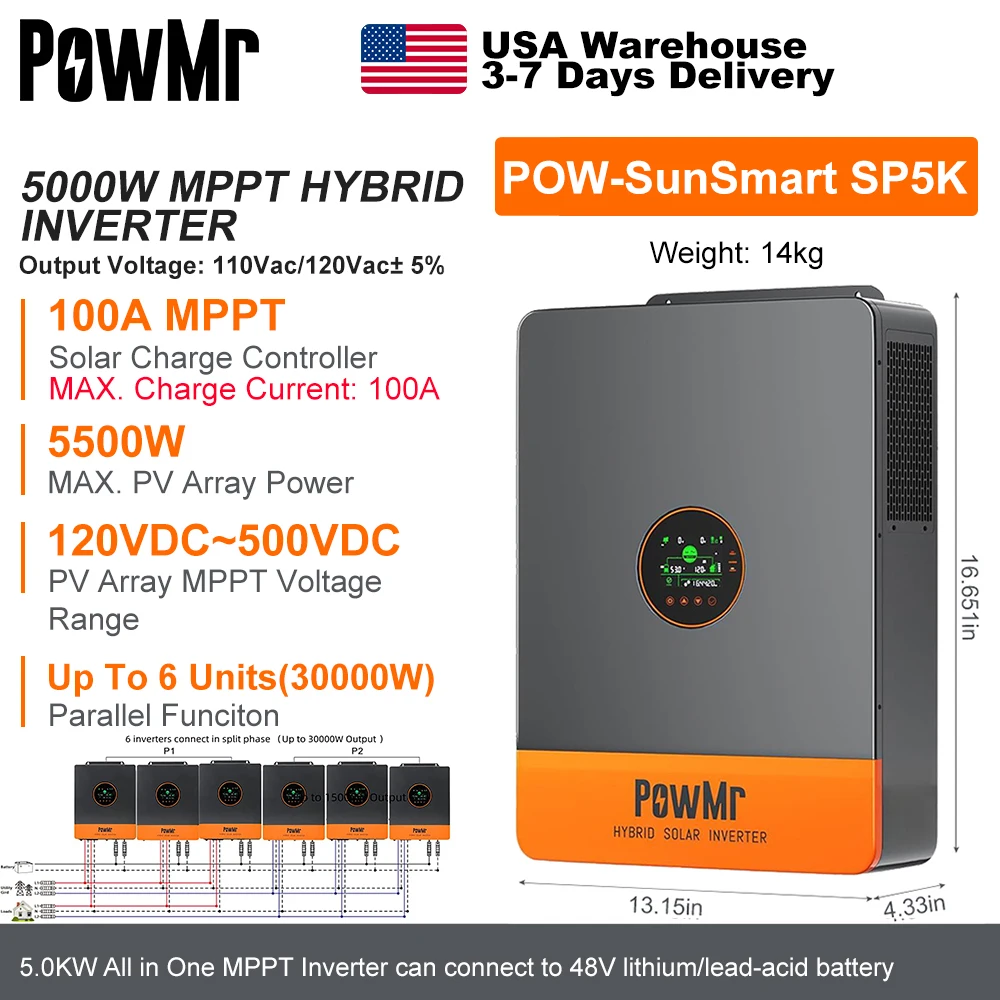

Parallel operation: Up to 6 Units

Rated input voltage: 110/120Vac

Rated output power: 5000VA/5000W

Size: 446.9*350*133 mm

Type: Hybrid solar inverter

Weight: 14KG

is_customized: Yes

Reading before ordering!

①About Shipping：

When the item is in stock in US warehouse, the package will be shipped directly from the US warehouse, and the package will arrive in 3-7 days.

When the item is out of stock in US warehouse, the package will be shipped by a special way from the CN warehouse, and will arrive in 7-14 days, tax-free and safe.

The package sent from China will have logistics information after 9 days,this is normal, don't worry.

②About returns:

Please check the product information and description carefully before placing an order, especially the output voltage and input voltage, and consider carefully before purchasing the right product. We do not accept returns and refund disputes that are not related to product quality!

When you have questions before order, please leave messages and I will reply you within 24 hours.

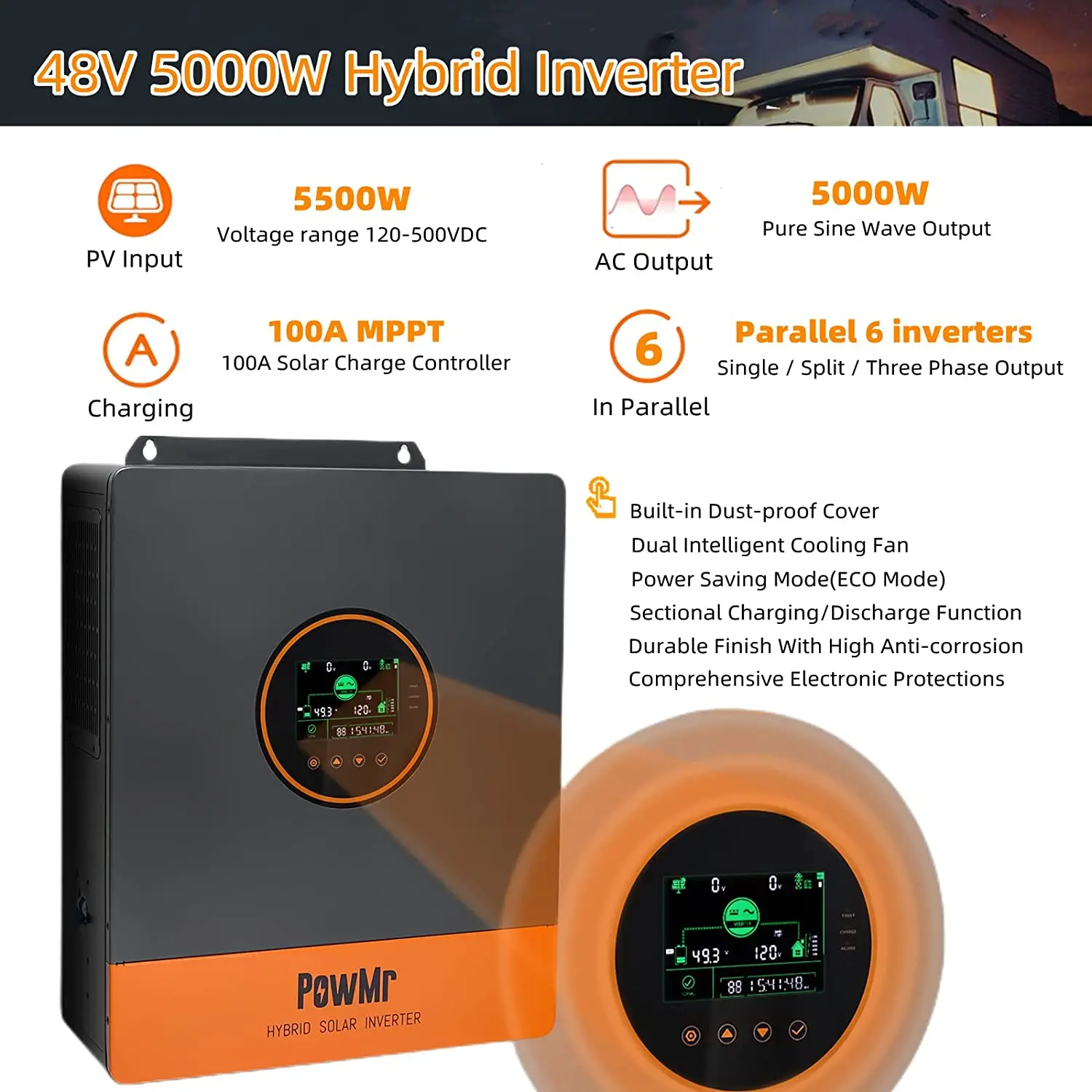

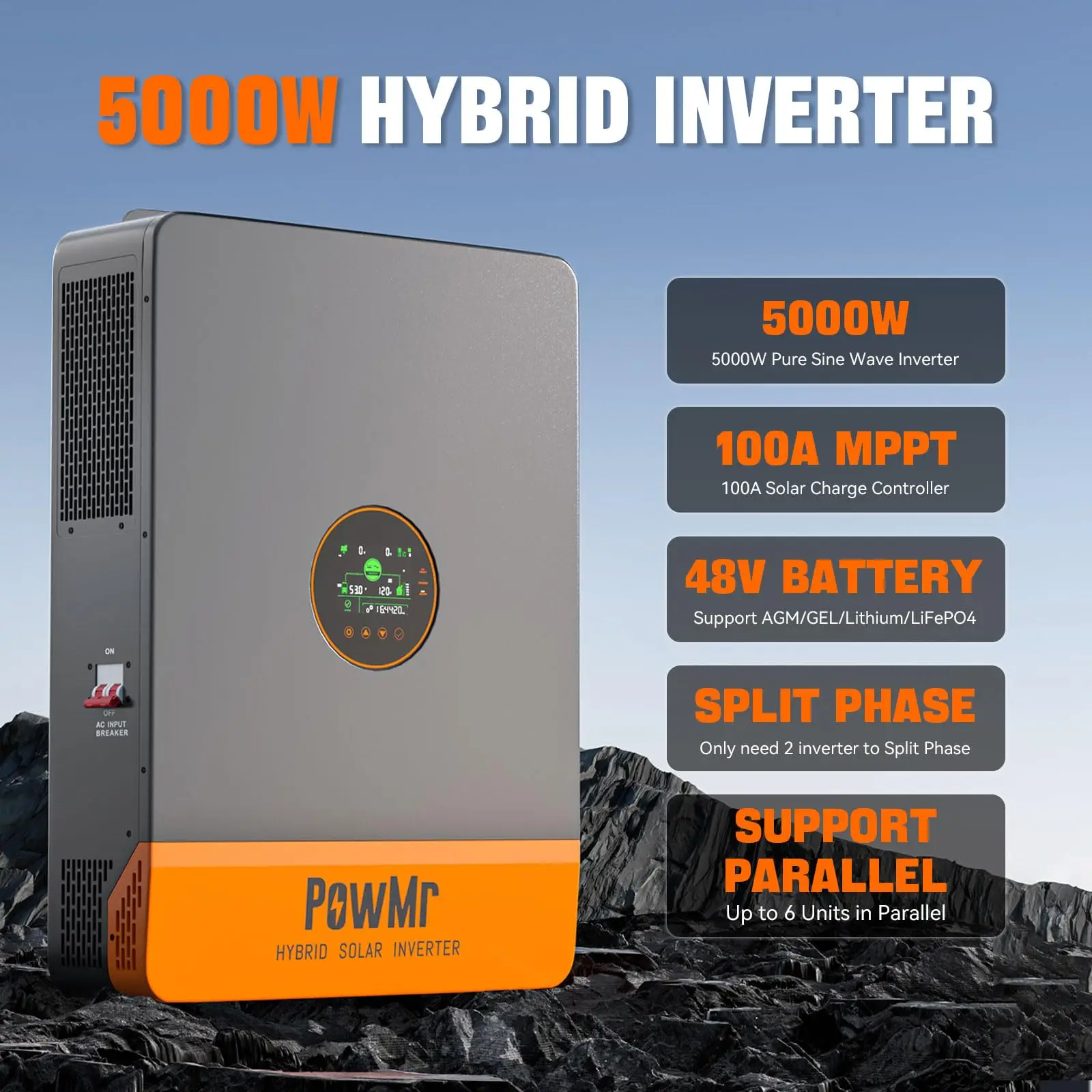

PowMr USA 5000W 48V Hybrid Solar Inverters 110Vac Can Split Phase 220Vac Output When Parallel Pure Sine Wave MPPT 100A PV 500Vdc

Introduction:

POW-SunSmart series is a new all-in-one hybrid solar charge inverter, which integrates solar energy storage & means charging energy storage and AC sine wave output.

Function:

⚫ Single phase/split phase

⚫ 120/220V AC output

⚫ Off-grid & on-grid

⚫ Parallel operation

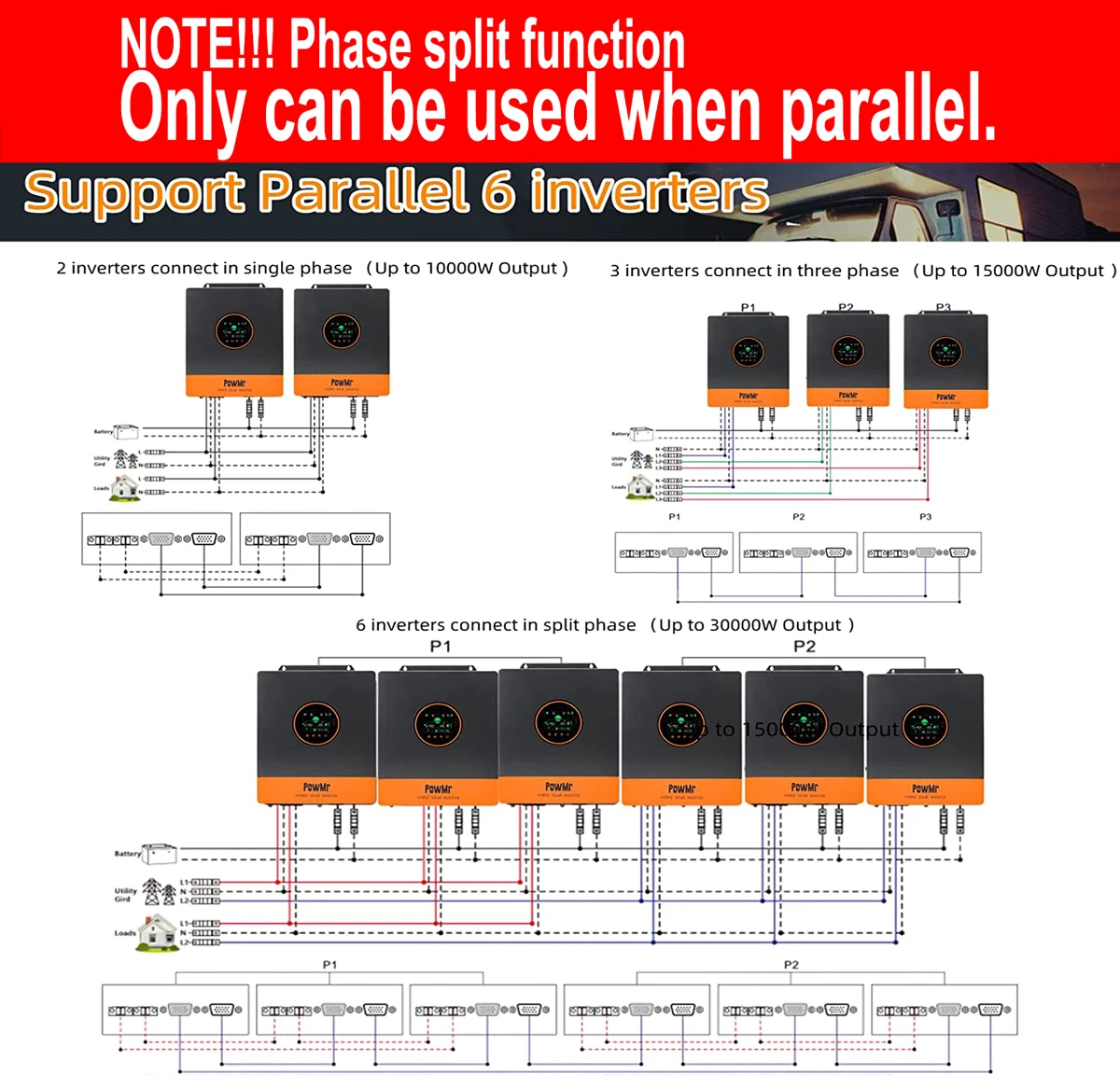

If you need split phase function, you need to buy 2 units.

Because when working in parallel, this inverter can use the phase splitting function to output 220VAC~240VAC.

But when working separately, this inverter cannot use the split-phase function and can only output 110VAC in a single phase.

Features:

1.Off-grid & on-grid pure sine wave inverter.

2. Maximum number of parallel connections is 6pc.

3. Higher output power up to 5000W.

4. 110Vac±5% output.

5. Supports single-phase/split-phase/three-phase devices.

6. Fast switching time of 10ms.

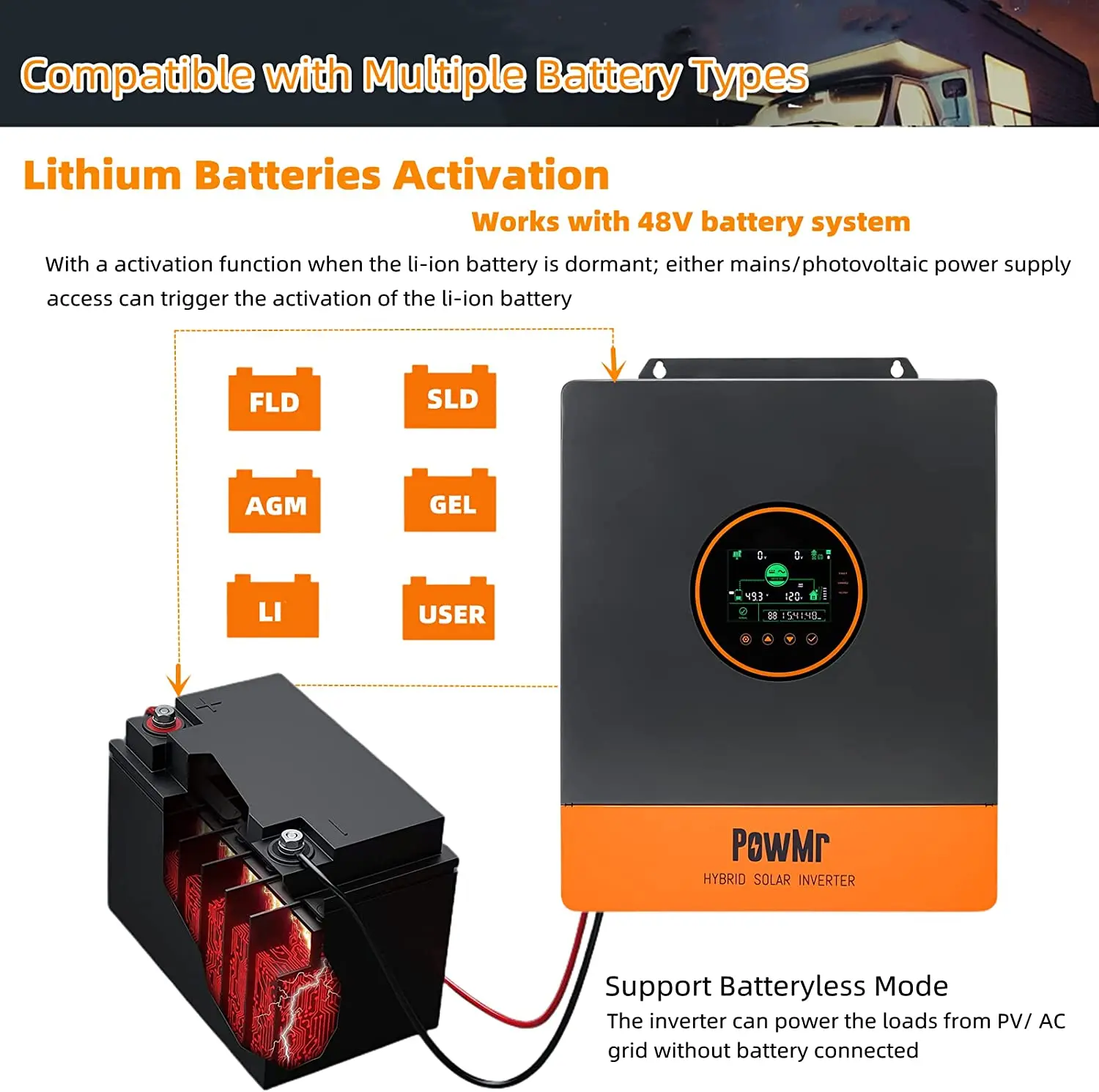

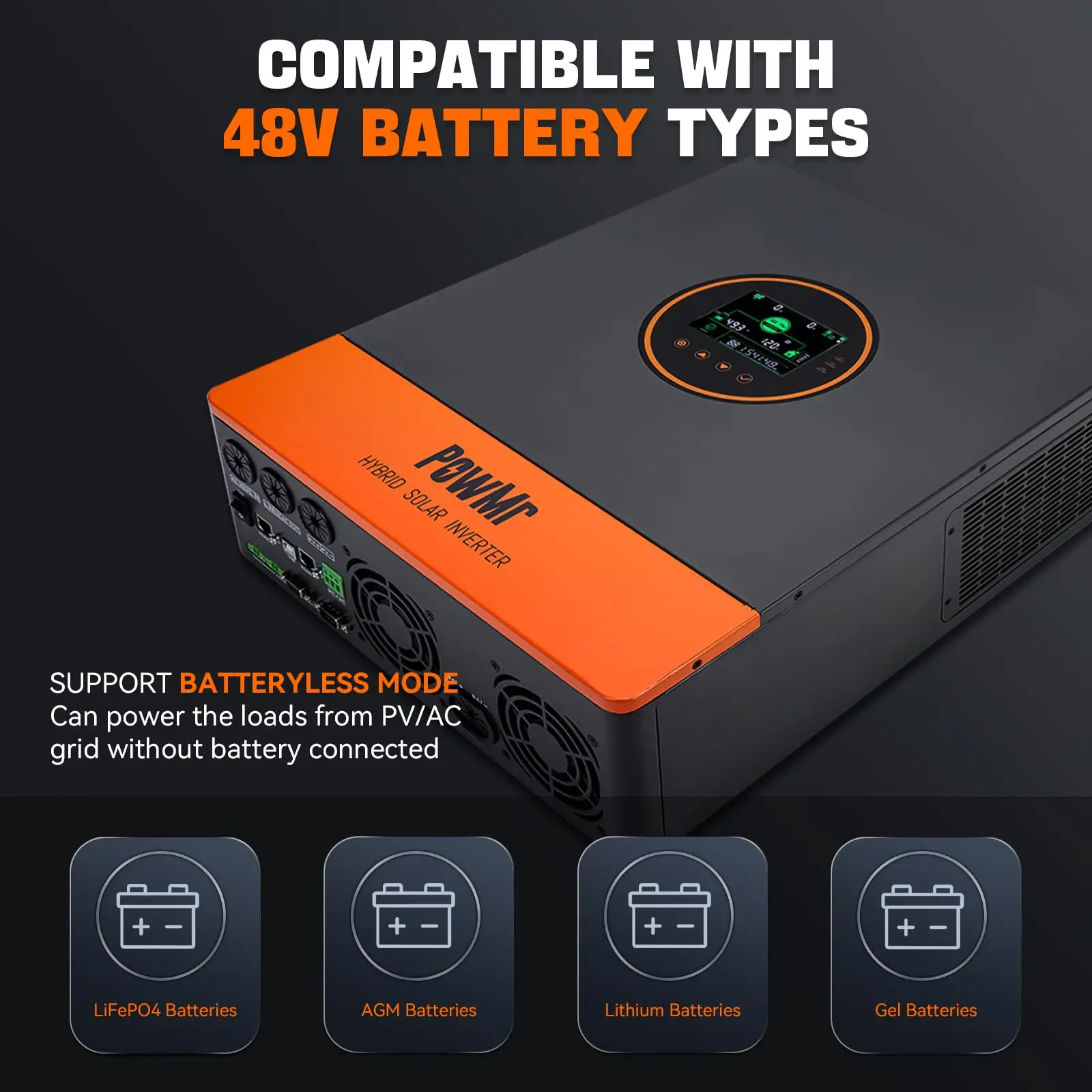

7. Compatible with 48V lithium-ion and lead-acid battery, support user-define.

8. Max. PV charging current up to 100A.

9. Max. AC charging current up to 40A.

10. Max. hybrid charging current up to 100A.

11. 90~140Vac AC input voltage range.

12. 120~500Vdc wide voltage range for PV access.

13. Higher input DC current up to 22A in a single circuit.

14. Energy saving mode function to reduce no-load energy losses.

15. Configure multiple communication interfaces (RS485/USB/Dry contact).

16. Durable finish with high anti-corrosion.

17. Effective forced air cooling to ensure that the equipment runs stably.

Specification:

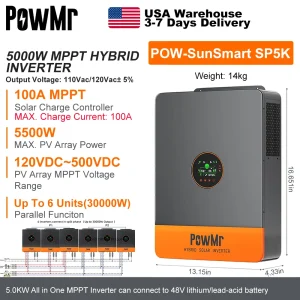

Models	POW-SunSmart SP5K
AC Mode
Rated input voltage	110Vac±5%
Frequency	50Hz/ 60Hz (Auto detection)
Overload/short circuit protection	Circuit breaker
Efficiency	>95%
AC reverse protection	Available
Maximum bypass overload current	63A
Inverter Mode
Output voltage waveform	Pure sine wave
Rated output power	5000VA
Rated output power	5000W
Power factor	1
Rated output voltage	120Vac Rated output voltage (100/105/110Vac Settable)
Maximum Efficiency	>92%
Peak power	10000VA
Loaded motor capability	4HP
Rated battery input voltage	48V (Minimum starting voltage 44V)
Battery voltage range	Undervoltage alarm/ shutdown voltage/ overvoltage alarm/ overvoltage recovery… settable on LCD screen
Power saving mode self-consumption	Load ≤ 50W
AC Output (Grid)
Rated Output Power	5000W
Max. apparent power	5000VA
Max. output current	41.7A
Rated voltage	120Vac
AC Charging
Battery type	Lead acid or lithium battery
Maximum charge current (can be set)	0-40A
Charge voltage range	40–58Vdc
Circuit breaker specifications	63A
Overcharge protection	Alarm and turn off charging after 1 minute
PV Charging
Maximum PV open circuit voltage	500Vdc
PV operating voltage range	120-500Vdc
MPPT voltage range	120-450Vdc
Battery voltage range	40-60Vdc
Maximum PV input power	5500W
Maximum PV input current	22A
PV charging current range (can be set)	100A
Hybrid charging Max charger current specifications (AC charger + PV charger)
Max charger current(can be set)	100A
Certified specifications
Certification	CE(IEC62109-1)
EMC certification level	EN61000
Operating temperature range	-10°C ~ 55°C
Storage temperature range	-25°C ~ 60°C
Noise	≤60dB
Heat dissipation	Forced air cooling, variable speed of fan

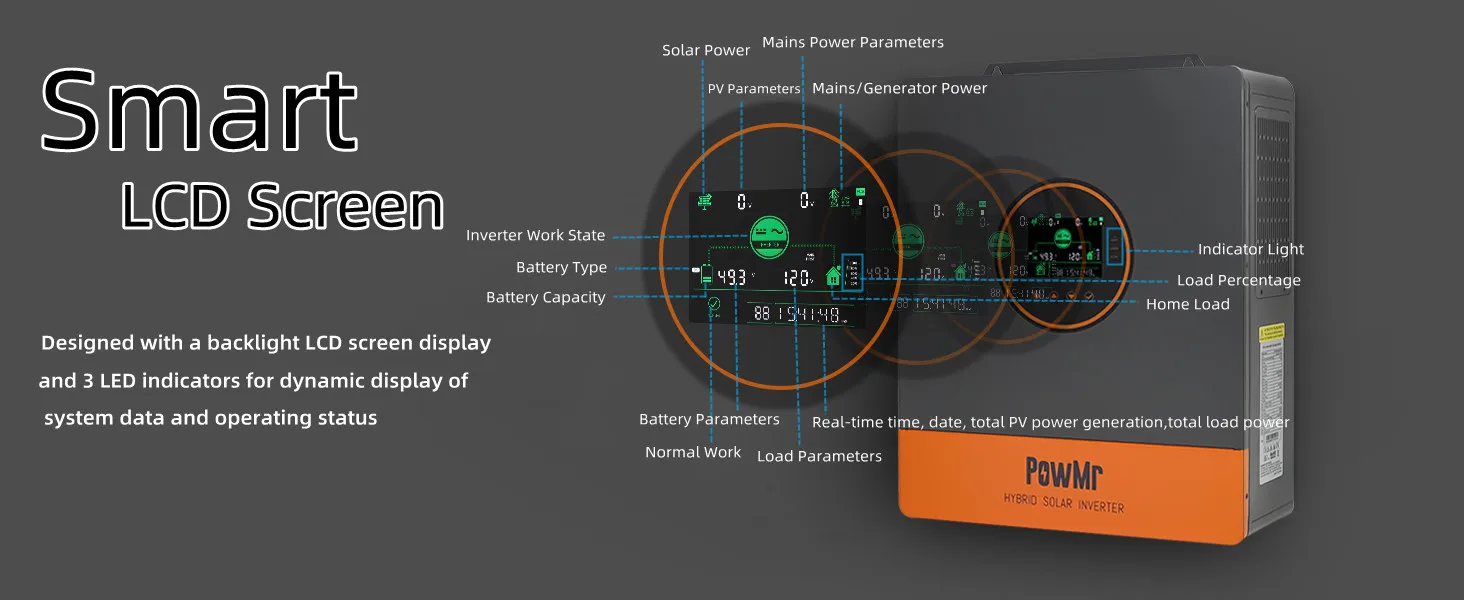

Communication interface	USB/RS485(WiFi/GPRS)/Dry contact control
Dimension (L*W*D)	446.9mm*350mm*133mm
Weight	14kg

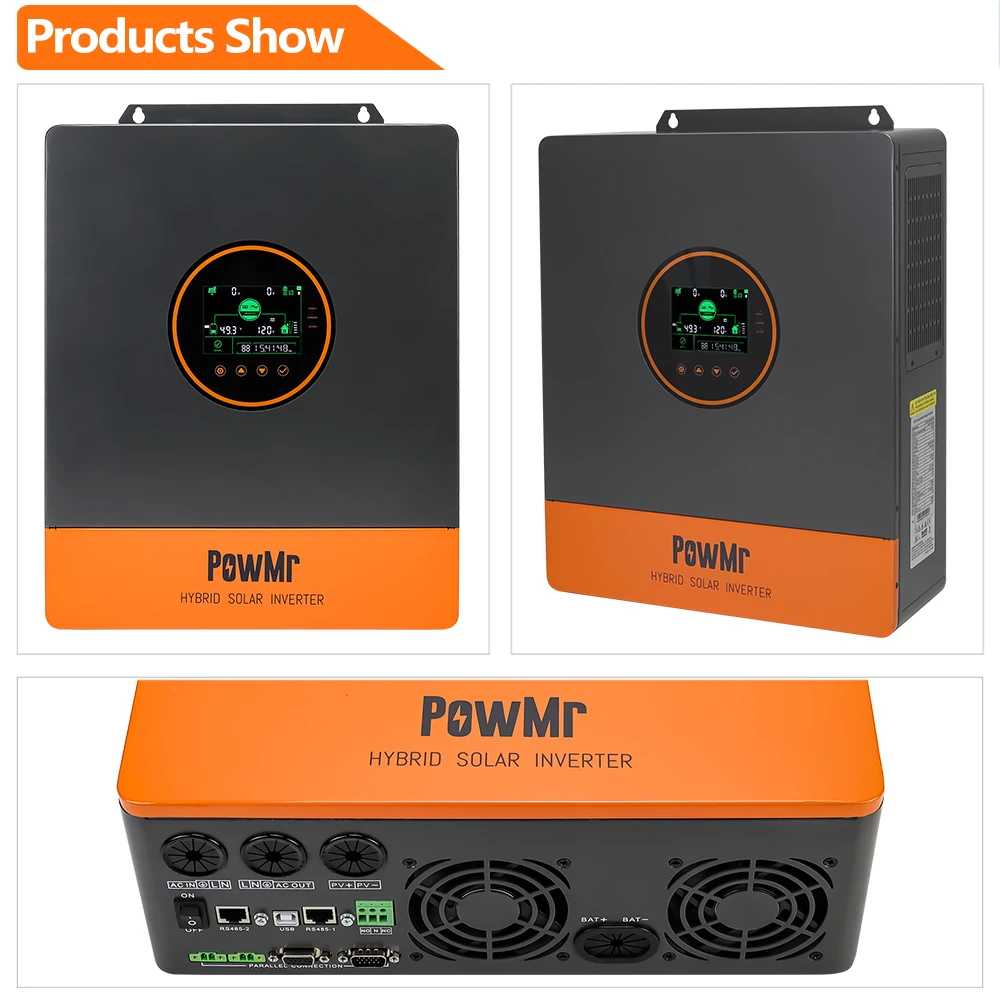

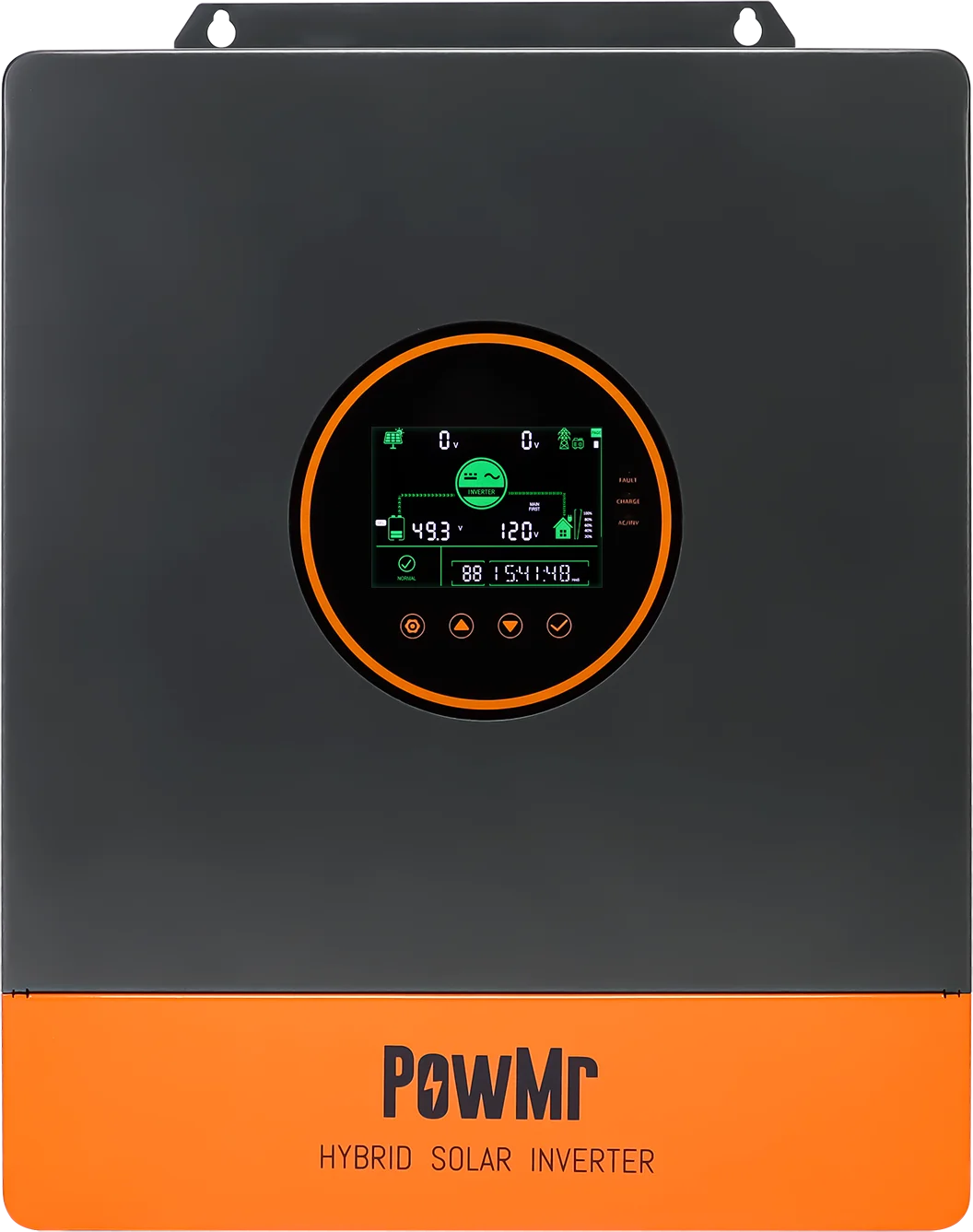

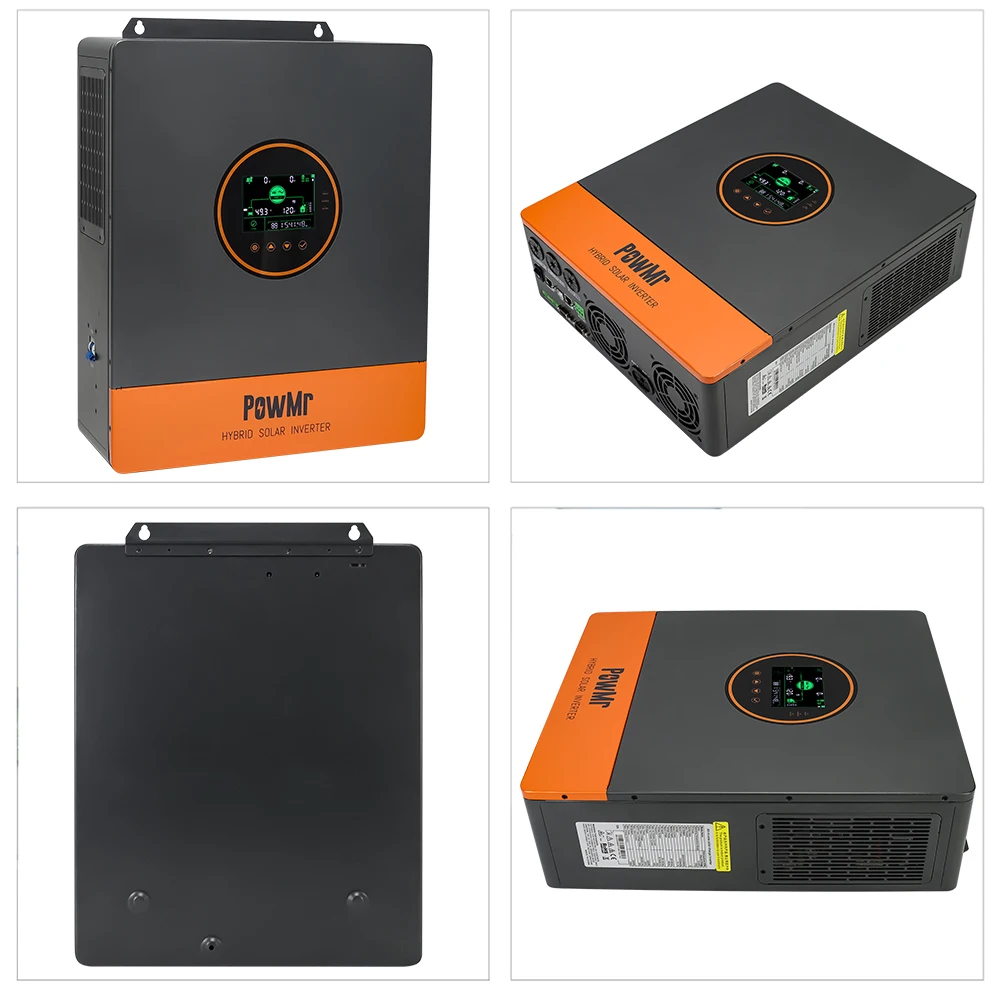

Product Overview:
